Concealed Hinge | 3-Way Adjustment | Up to 16kg Doors (Min 23mm)
A versatile concealed hinge for medium-weight timber doors, commonly used in bespoke cabinetry, wardrobes and lighter internal doors.Ā The increased load capacity makes it suitable for taller doors while maintaining a slim, fully concealed appearance.Ā Three-way adjustability allows accurate on-site alignment, making it a reliable choice for high-quality residential joinery.
Available in Black, Silver or Champagne Gold.
Specification:
- Maximum Door Weight - Up to 12 kg with 2 hinges / Up to 16 kg with 3 Hinges
- Minimum Door Thickness - 23 mm
- Maximum Door Width - 600 mm
- Maximum Door Height - 1500 mm

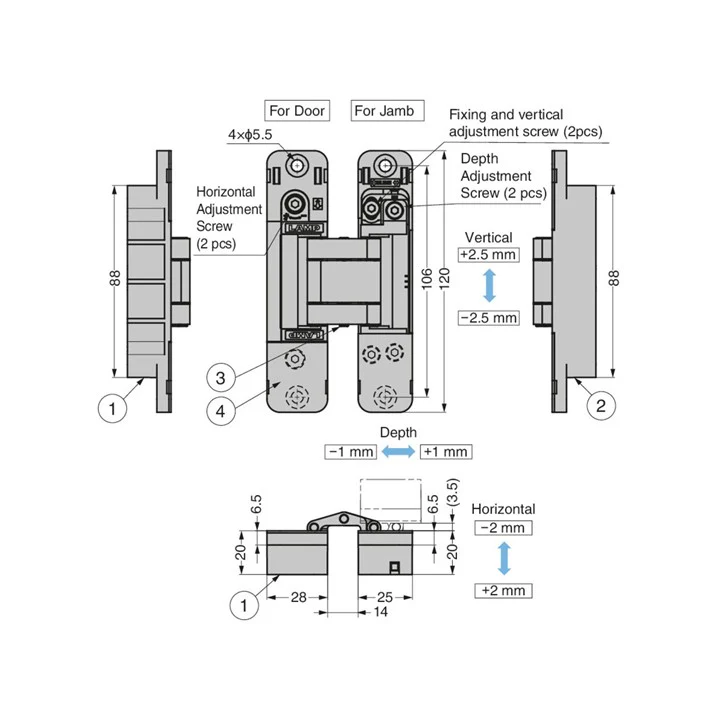

More detailed information can be found in theĀ Technical Data Sheet andĀ Installation Manual.
